How Projection Is Supercharging Manufacturing Productivity and Quality

This technology can be used to disrupt any manufacturing industry where visual instruction can be used to increase quality and efficiency

In today’s modern age information should be readily available at the click of a button…. not 20 minutes of searching through a paper document finding out which cable or fastener to use. It’s a bigger issue than just time though, people inherently make mistakes when they’re pulling mass amounts of information from documents, quality takes a hit and so do your finances.

Projection

Let’s introduce Projection. Projection allows you to display the right information at exactly the right time in the manufacturing process. No need to thumb through large amounts of paper anymore. You can show your workers exactly what to do, where to do it and when to do it. This allows your workers to spend more time on tool using their skill set, speeding up manufacturing time whilst drastically increasing quality. Projection so far is changing Aerospace Assembly and manufacturing by maximising human efficiency.

How does it work

A3L work very closely with DELTA SIGMA in the U.S. delivering manufacturing projection solutions to the UK and Europe using ProjectionWorks.

ProjectionWorks is a family of products designed to add visual work instructions directly onto anything – regardless of shape or size

Assembly

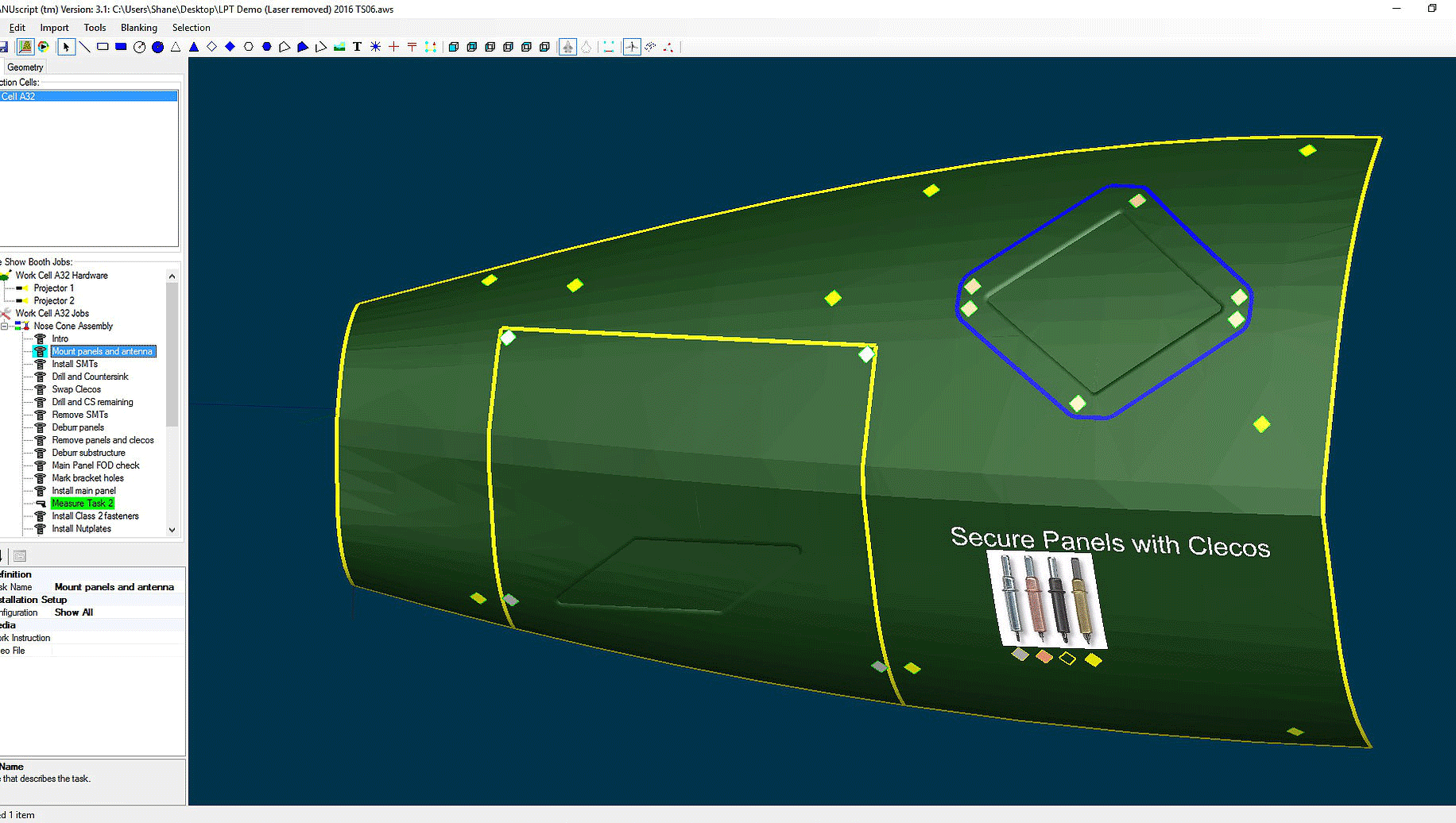

1, Write the script

1, Write the script

2, Display the script

2, Display the script

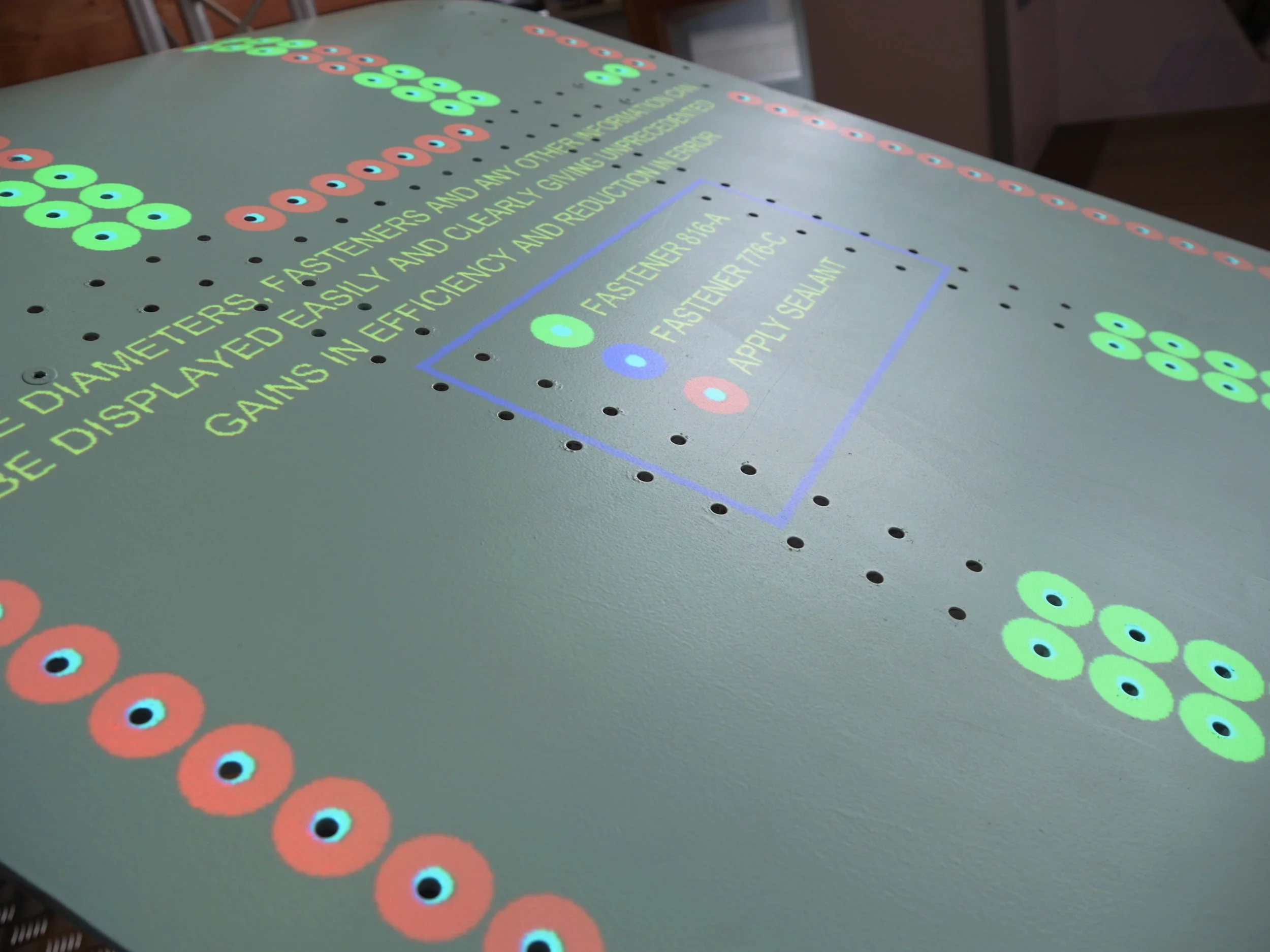

Assembly instructions can be shown directly to a worker on the part they’re using. Showing them what to do, how to do it and where. Any other information like tools can also be shown.

This disruptive manufacturing technology has saved more than 200 hours per plane and a potential $111 million for the F-35 program alone.

Harness

Wire paths and connectors can be projected directly onto a magnetic harness board eliminating the need for Mylar and storing hundreds of boards for each harness. Production speed is increased and error rates get dramatically reduced, the technician can spend more time building the connectors and harness instead of searching through harness documents.

Paint

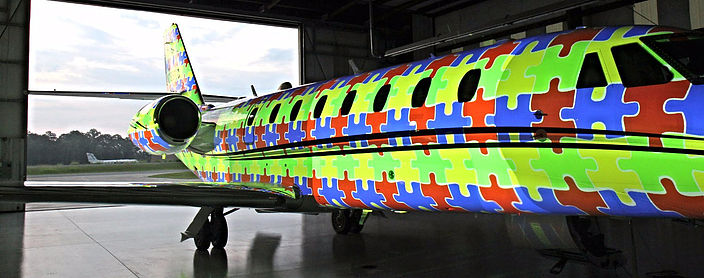

Full paint schemes can be projected onto an aircraft and can be switched within seconds. This is perfect for demonstrating paint jobs or masking accurately giving a uniform perfect paint job on every aircraft.

Who's using ProjectionWorks

This technology can be used to disrupt any manufacturing industry where visual instruction can be used to increase quality and efficiency



A3L are the lead supplier of ProjectionWorks to the UK and Europe. For more information please feel free to contact us:
